About:

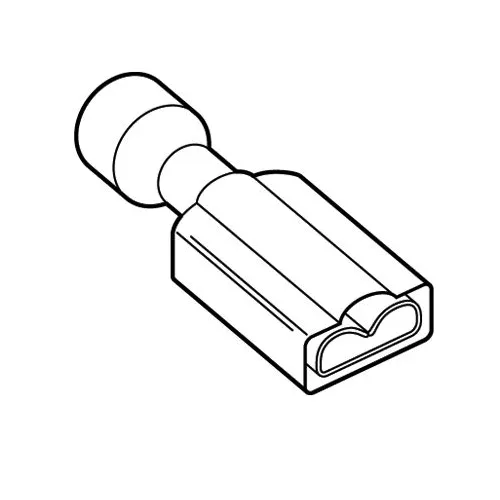

The DNF18250FIBX-L is a specialized Pan-Term Female Disconnect terminal optimized for wire terminations in the 22-18 AWG range. Its nylon insulation assures protection from potential electrical interferences and sustains insulation resistance. The term "Expanded" suggests the terminal may accommodate a broader range of wire sizes or has some extended feature compared to the standard. Available in a pack of 50, it is suitable for specific or smaller-scale projects.
Also Known As:
• Nylon Crimp Terminal Expanded
• Expanded Female Spade Terminal
• Female Quick Disconnect Expanded
Common Applications:
• Circuitry in delicate industrial equipment.
• Small electronic devices and peripherals.
• Precision electrical systems in automotive setups.
• Customized electrical panels and distribution units requiring precision.
• HVAC controls and sensors.
Standards:
• UL (Underwriters Laboratories) safety criteria.
• RoHS (Restriction of Hazardous Substances) compliance.
• CE certifications, indicating alignment with European norms.
Construction:
• Terminal Body: Commonly made of tinned or plated brass or copper to guarantee efficient electrical conduction.
• Insulation: Crafted from nylon, this feature ensures electrical isolation and safeguards the connection from ambient conditions.
• Crimp Barrel: This segment is where the wire is inserted and then crimped, creating a robust connection between the wire and terminal.
Features:
• Quick Disconnect Mechanism: Enables seamless and secure linkage and detachment.
• Expanded Nylon Insulation: Provides a broader range or enhanced features in terms of insulation, ensuring better protection.
• Applicable to Varied Wire Range: Specifically designed for 22-18 AWG, addressing a range of applications.
• Durable Design: Resistant to standard solvents, oils, and other potentially corrosive substances.
• Ease in Identification: Leveraging color-coding (commonly red for 22-18 AWG), the terminal facilitates prompt gauge compatibility recognition.
Specification:
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length | 1932-09-01 In. |
| Tab Size | 0.250 x 0.032 In. |
| Maximum Voltage | 600 V |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Expanded Entry |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size | 1 (mm²) |
| Minimum Metric Conductor Size | 0.5 (mm²) |
| Maximum Wire Insulation Diameter | 0.21 In. |
| Overall Length | 0.93 In. |
| Overall Width | 0.35 In. |
| Tongue Angle | Straight |
| Seam Type | Butted |
| Packaging Type | Bottle |
| Product Type | Disconnect |
| Maximum Voltage | 0.6 (kV) |
| Part No |
DNF18250FIBX-L |
