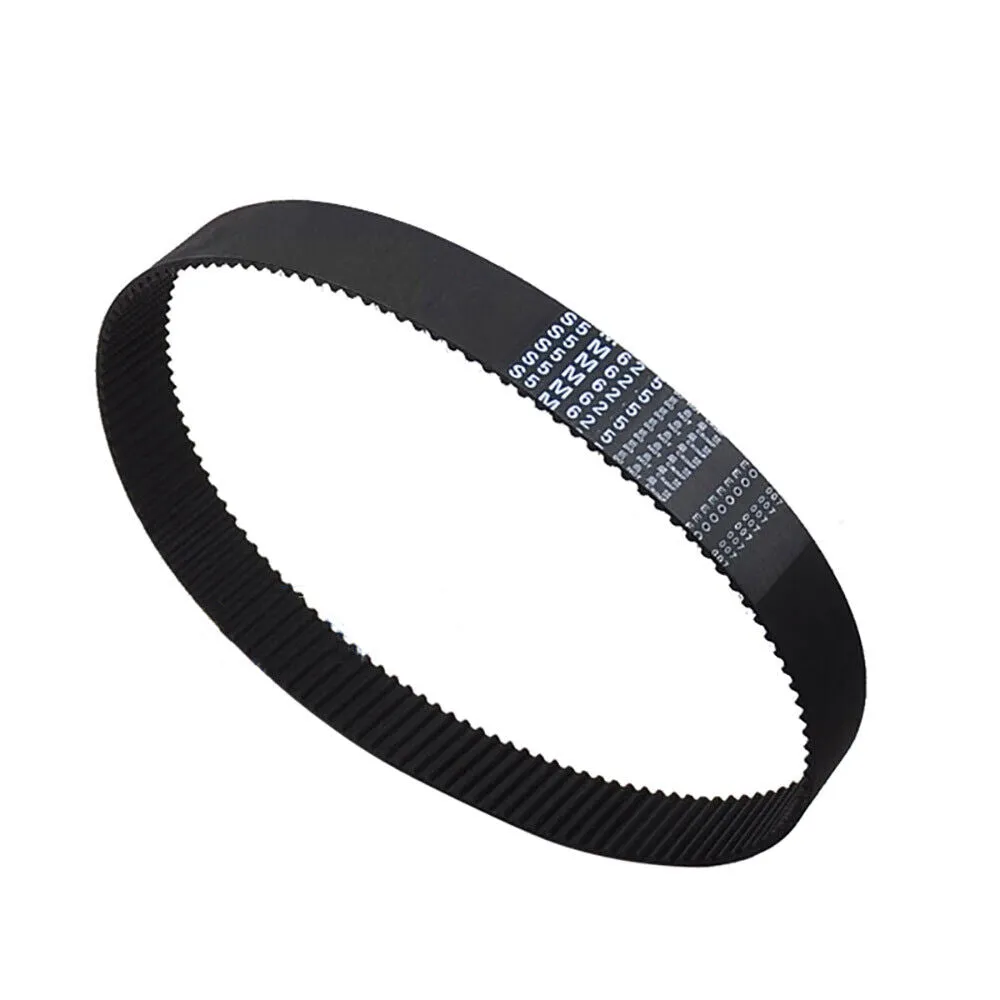

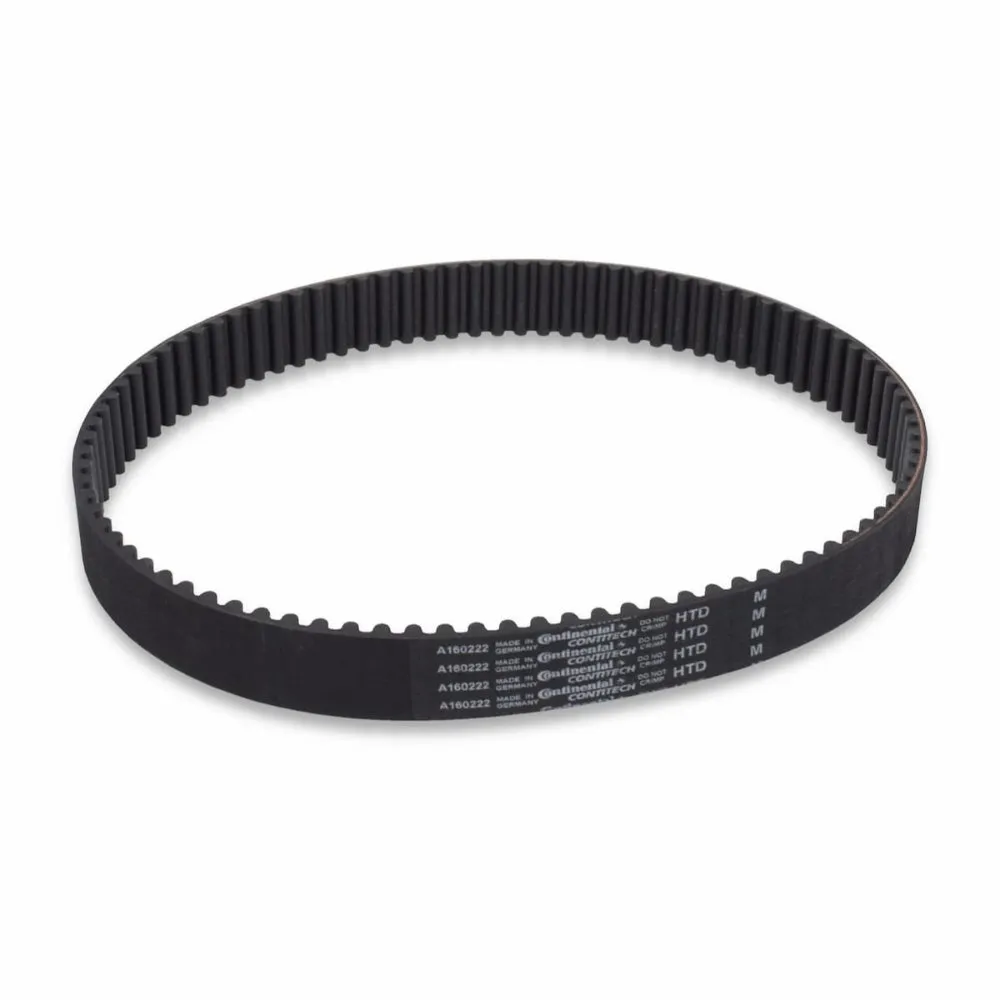

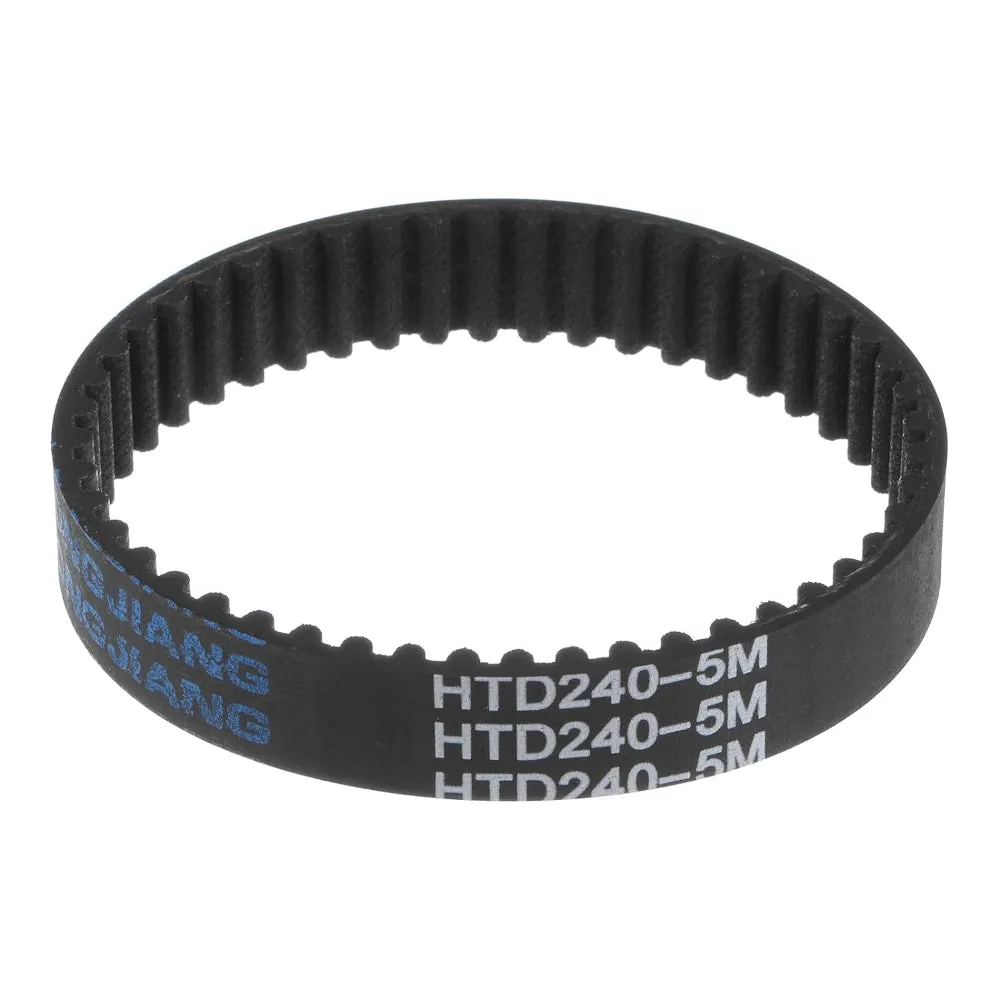

The 3M 240 Rubber Timing Belt is a high-precision synchronous belt designed for reliable and consistent motion control in various mechanical systems. With a pitch of 3 mm and an effective length of 240 mm, this close-loop timing belt ensures accurate synchronization between the driving and driven components, minimizing slippage and maintaining smooth operation.

Features:

Name: 3M 240 Rubber Timing Belt Close Loop Synchronous Wheel Timing Belt
SKU: 2240147

Close-Loop Design: Ensures a continuous loop without the need for splicing or joining, reducing the risk of failure and ensuring consistent performance.

Synchronous Motion: Teeth on the belt engage with the teeth of the pulley or gear for precise and synchronized movement.

Low Noise Operation: The rubber material results in quieter operation compared to metal gears.

Flexibility: The rubber belt provides flexibility, making it suitable for different angles and orientations.

Applications:

Automated Machinery: Ideal for use in CNC machines, 3D printers, and other automation systems where accurate and reliable movement is crucial.

Conveyor Systems: Suitable for conveyor systems that require precise timing and spacing of items.

Printers: Commonly used in inkjet and laser printers to ensure accurate paper feeding.

Specifications

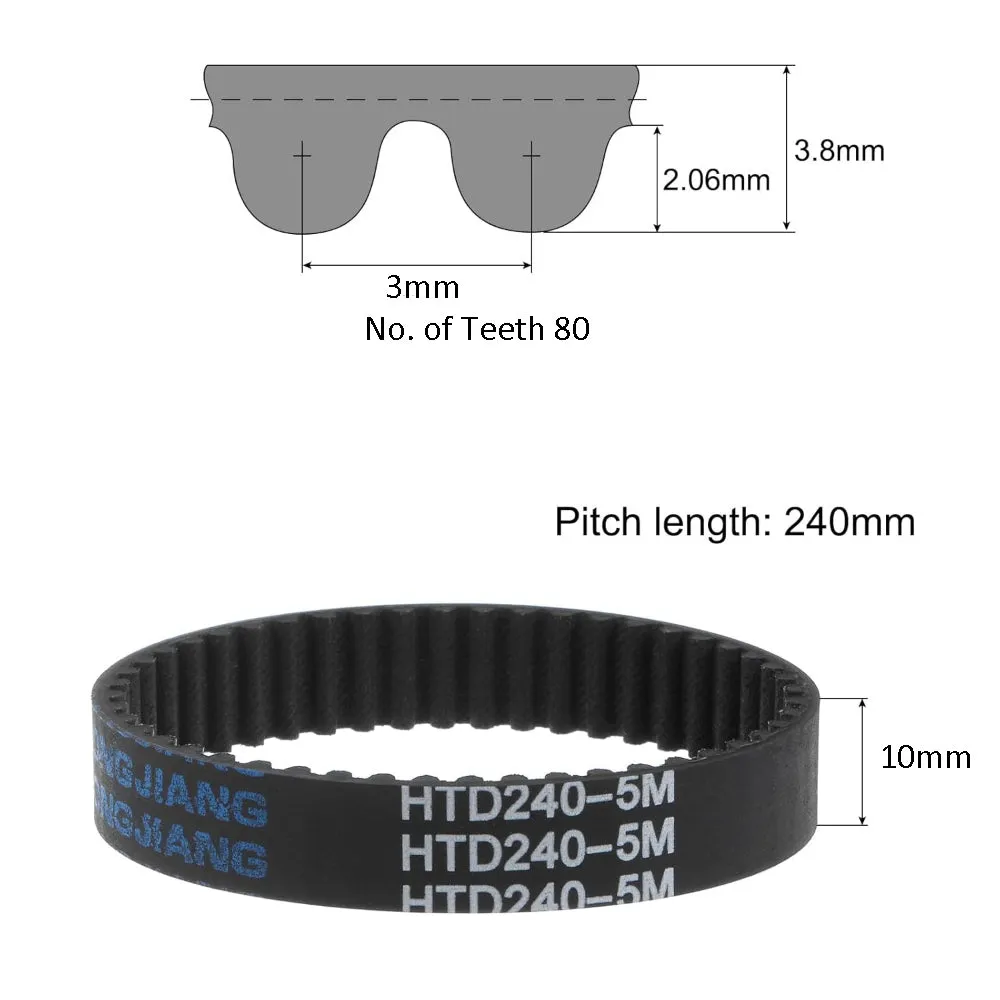

Pitch: 3 mm (the distance between the centers of two adjacent teeth)
Number of Teeth: 80 (calculated as 240mm/3mm pitch 240mm/3mm pitch)
Effective Length: 240 mm
Belt Width: Available in various widths (e.g., 6 mm, 9 mm, 12 mm)
Material: Durable rubber, often reinforced with fibers for enhanced strength and flexibility
Temperature Range: Typically operational between -20°C and 80°C, depending on the rubber composition
Tensile Strength: Designed to endure varying loads with high tensile strength
