Product Details
＋

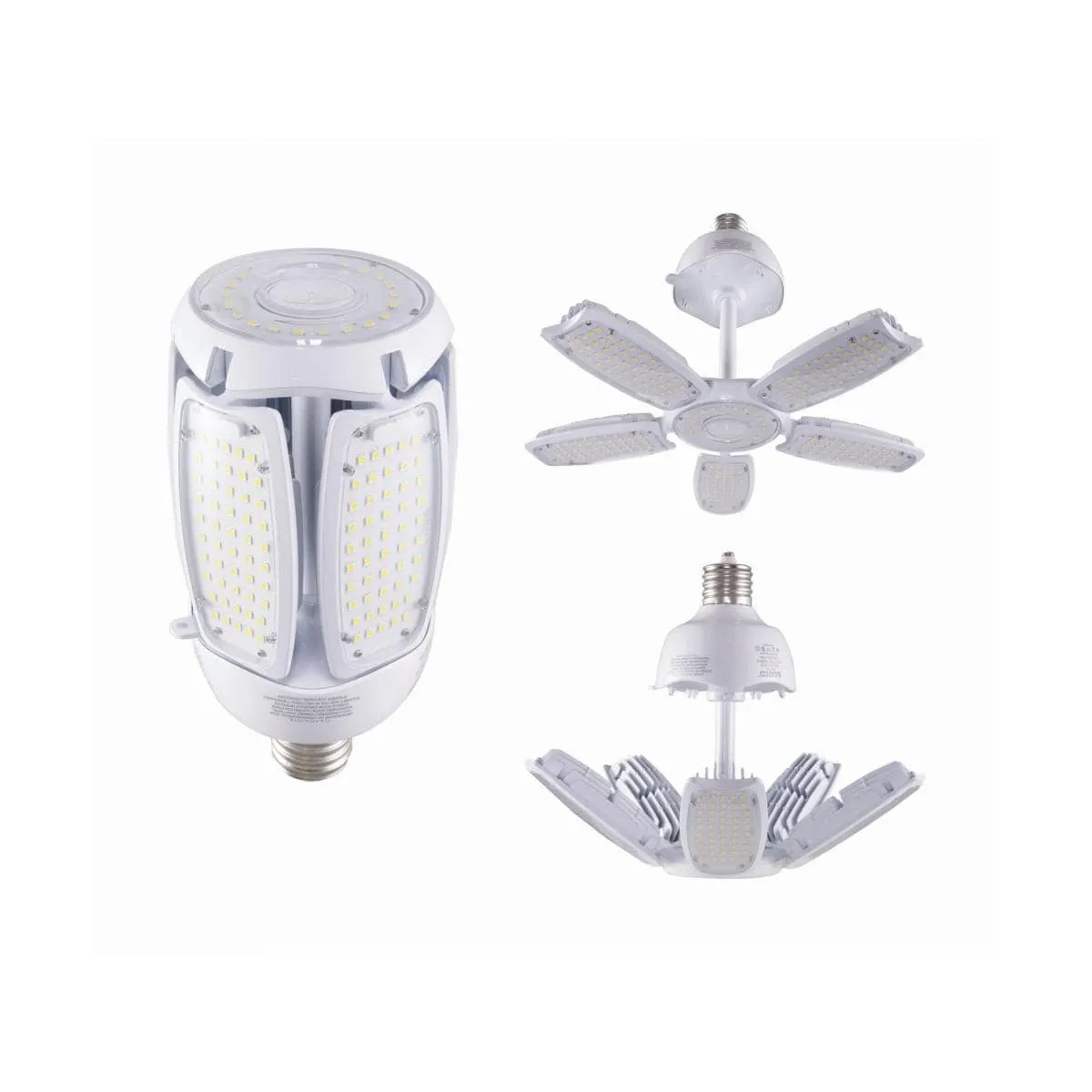

90 Watt LED HID Replacement; 5000K; Mogul Extended base; Adjustable Beam Angle; Type B Ballast Bypass;100-277 Volt
General
| Status | Active |
| Watts | 90W |
| Incandescent Equivalent | 750W |
| Fluorescent Equivalent | 150W |
| HID Equivalent | 600W |
| Volts | 100V-277V |
| Shape | Corncob |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | Clear |
| CCT (Kelvin) | 5000 |
| Temperature | Natural Light |
| CRI | 80 |
| Lumens | 12600L |
| Beam Spread | 120;150;260 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | LED HID |
| Technology | LED |
| Min Compartment Size | Width: 17.30 in. Depth: 17.30 in. Height: 11.90 in. |
Electrical
| Watts | 90W |
| Incandescent Equivalent | 750W |
| Fluorescent Equivalent | 150W |
| HID Equivalent | 600W |
| Volts | 100V-277V |
| Operating Frequency | 50/60 Hz |
| CCT (Kelvin) | 5000 |
| Temperature | Natural Light |
| CRI | 80 |
| Lumens | 12600L |
| Beam Spread | 120;150;260 |
| Dimmable | Non-Dimmable |
| Power Factor | >0.9 |
| Hours Rated | 50000 |
| Surge Protection | Built-in surge protection - 4KV |
| THD | <20% |
| Operating Temperature | -20C (-4F) to a maximum of 65C ( 149F) |
Physical
| MOL | 9.84 |
| MOD | 4.84 |
| Shape | Corncob |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | Clear |
| Lens Finish | Clear |
| Lens Material | Thermo Plastic (PBT) |
| Housing Color | White |
| Photocell | Optional Add-On |
| Weight (lb.) | 3.48 |
Additional Information
| Additional Info | PIR Sensor available as an accessory |
| Min Compartment Size | Width: 17.30 in. Depth: 17.30 in. Height: 11.90 in. |
| Rated For Enclosed Fixture | Yes |
| IP Rating | IP64 |
| Specification Note | Closed 260 deg; Partial 150 deg; Open 120 deg |
| Warranty |
Compliance
| Safety Listing | cULus Classified |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PLCLAJBHFHX0 |
| California Status | Lawful for sale |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923396793 |
| Each Quantity | 1 |
| Each Length (in.) | 5.51 |
| Each Width (in.) | 5.51 |
| Each Height (in.) | 11.61 |
| Each Weight (lb.) | 4.47 |
| Each Cube (CuFt.) | 0.2040 |
