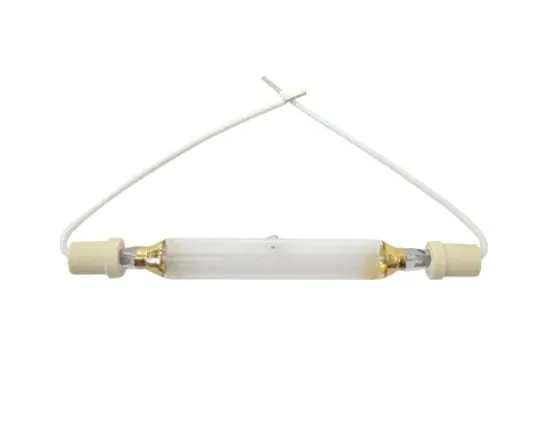

This UV Bulb VZero 085D is suitable for Agfa Anapurna M UV printers. This is the original Agfa manufactured UV lamp (part number 500175).

This VZero 085D UV lamp is a highly compact, ultra-lightweight, modular UV system, designed specifically for inkjet curing applications. With an arc length of 8.8cm and power output of 80/200 W/cm, this lamp represents one of the most effective, high output, high-quality UV emitters of its size on the market today.

VZero Standard Features:
    •    Ultra-compact 'footprint'
    • High-intensity reflector system
    •    Rapid warm-up and cool down
    •    In-head ignitors for reliable start and added safety
    •    Positive integrated air-cooling
    •    Low voltage, extendable length power lead
    •    Plug and socket cabling connections
    •    500 hours coverage under normal conditions
    •    6 months shelf life

VZero Operation
    •    Lamp warm-up: 20-30 seconds
    •    Lamp cool-down: 40-50 seconds
    •    Focal length: 60mm from lamphead

Power Supply
204/240V 50/60Hz (055-140)
380/415V 50Hz/60Hz Three-phase
(170-270mm)

Dimension:
    •    Arc length: 88mmm
    •    Total length: 155mm

Compatible Printers:

• Agfa Anapurna M
• Agfa Anapurna M4F
• Agfa Anapurna MV
• BIG PRINTER UV 2133
• Dilli Neo Titan UVT-2506WS
• Dilli Neo Titan UVT-1606S
• Dilli Neo Titan UVT-1606W
