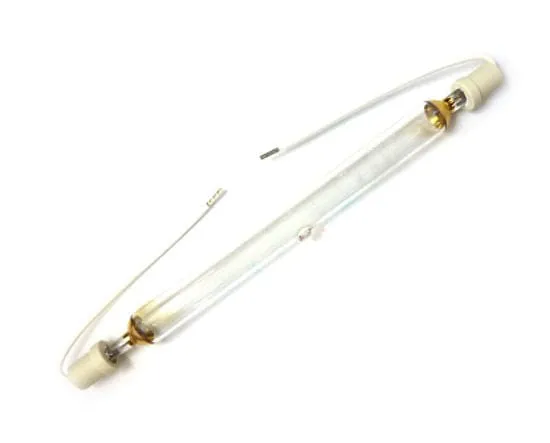

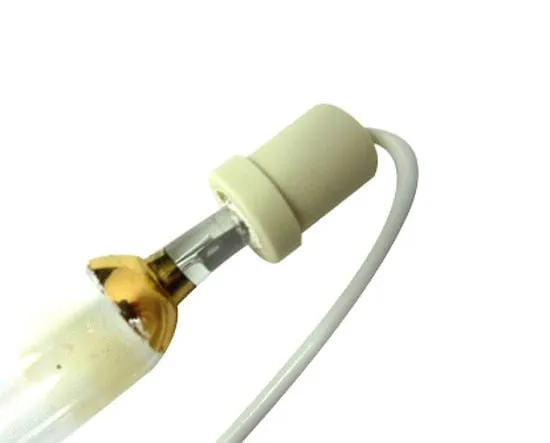

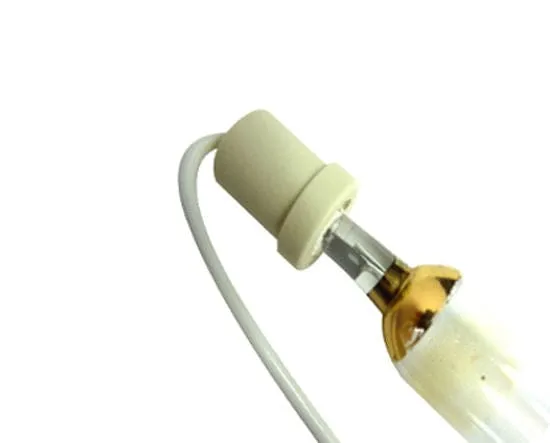

This UV Bulb VZero 171D is suitable for Agfa Anapurna UV printers. This is the original Agfa manufactured UV lamp (part number D2 OYG2G / D90DY / 500551 / 502075).

This VZero 171D UV lamp is a highly compact, ultra-lightweight, modular UV system, designed specifically for inkjet curing applications. With an arc length of 171mm (7 inches) and power output of 80/200 W/cm, this lamp represents one of the most effective, high output, high-quality UV emitters of its size on the market today.

VZero Standard Features

• Ultra-compact 'footprint'
• High-intensity reflector system
• Rapid warm-up and cool down
• In-head ignitors for reliable start and added safety
• Positively integrated air-cooling
• Low voltage, extendable length power lead
• Plug and socket cabling connections
• 500 hours coverage under normal conditions
• 6 months shelf life

Vero Operation

• Lamp warm-up: 20-30 seconds
• Lamp cool-down: 40-50 seconds
• Focal length: 60mm from the lamp head

Power Supply

• 204/240V 50/60Hz (055-140)
• 380/415V 50Hz/60Hz Three-phase
• (170-270mm)

Dimension

• Arc Length: 171mm
• Total Length: 250mm

Compatible Printers:

• Agfa Anapurna M2050
• Agfa Anapurna M1600
• Agfa Anapurna M²
• Agfa Anapurna M2500
• Agfa Anapurna M2540
• FB Dilli Neo Titan FB2513-06DW
• Dilli Neo Titan UV-1604D
• Dilli Neo Titan UVT-1604D-W2V
