Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter's 3262 fuel level sender).

Resources

Specifications:

Add-On	5289;3299;5284;5290;5291;2280
Description_ASC	CHEVY VINTAGE
Description_DEF	Gauge Set

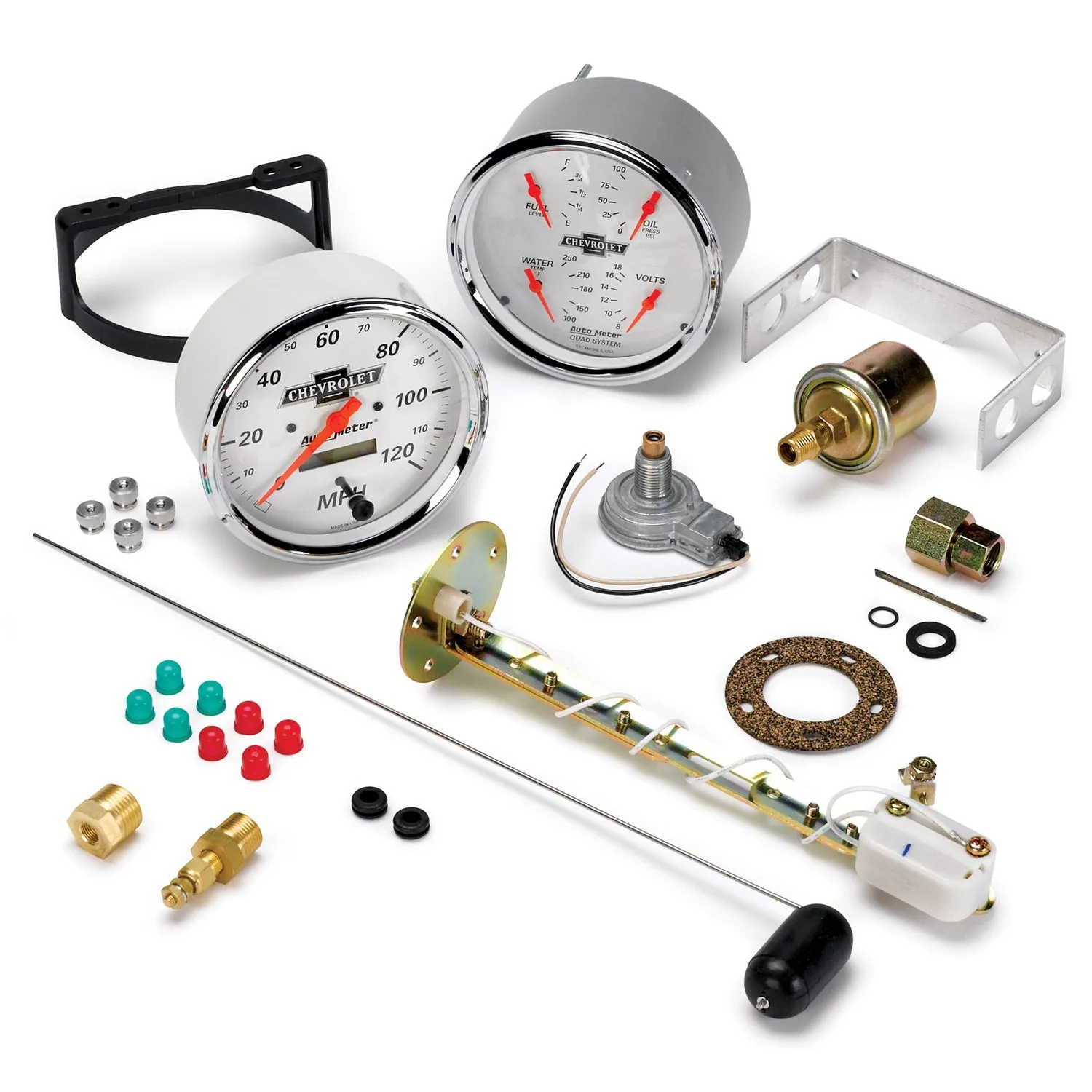

Description_DES	GAUGE KIT, 2 PC., QUAD & SPEEDOMETER, 5", CHEVROLET HERITAGE BOWTIE
Description_DES	GAUGE KIT; 2 PC.; QUAD/SPEEDOMETER; 5in.; CHEVROLET HERITAGE BOWTIE
Description_EXT	2 PC. GAUGE KIT; 5in. QUAD/SPEEDOMETER; 240-33 O; CHEVY VINTAGE
Description_EXT	Traditional incandescent lighting illuminates around the perimeter of the dial
Description_FAB	1 Year Limited Warranty
Description_FAB	12 And 16 Volt Compatible
Description_FAB	12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Description_FAB	4 in 1 Gauge Design Saves Valuable Real Estate
Description_FAB	4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
Description_FAB	Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
Description_FAB	bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
Description_FAB	Domed Lens
Description_FAB	Incl. Fuel Level Sender 240E/33F Ohms
Description_FAB	Incl. Oil Pres./Water Temp Sender; 2-Wire Hall-Effect Sender

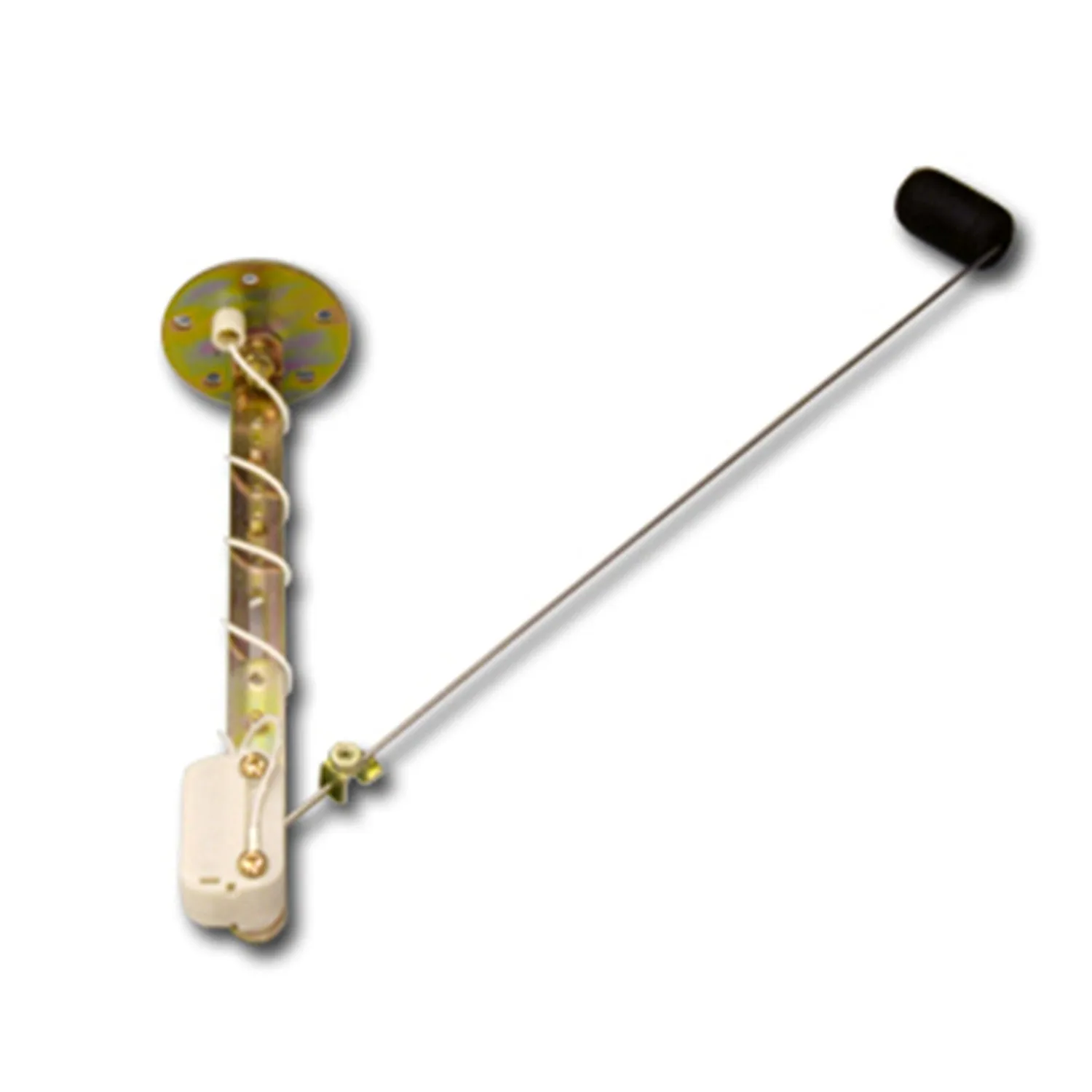

Description_FAB	Kit includes fuel level sender (240E/33F)
Description_FAB	Lit LCD Odometer Is Capable Of Registering One-Million Miles
Description_FAB	Nostalgic Look

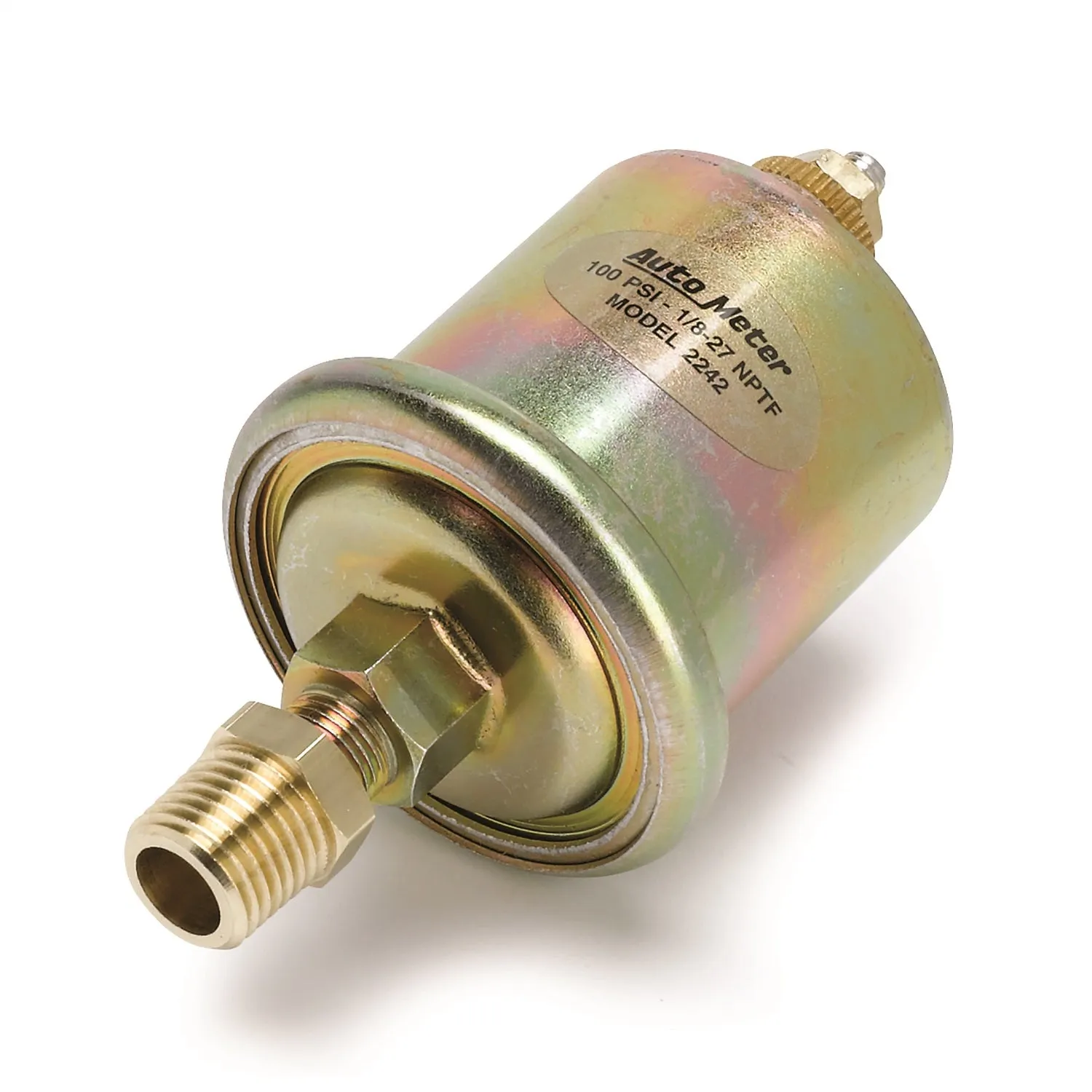

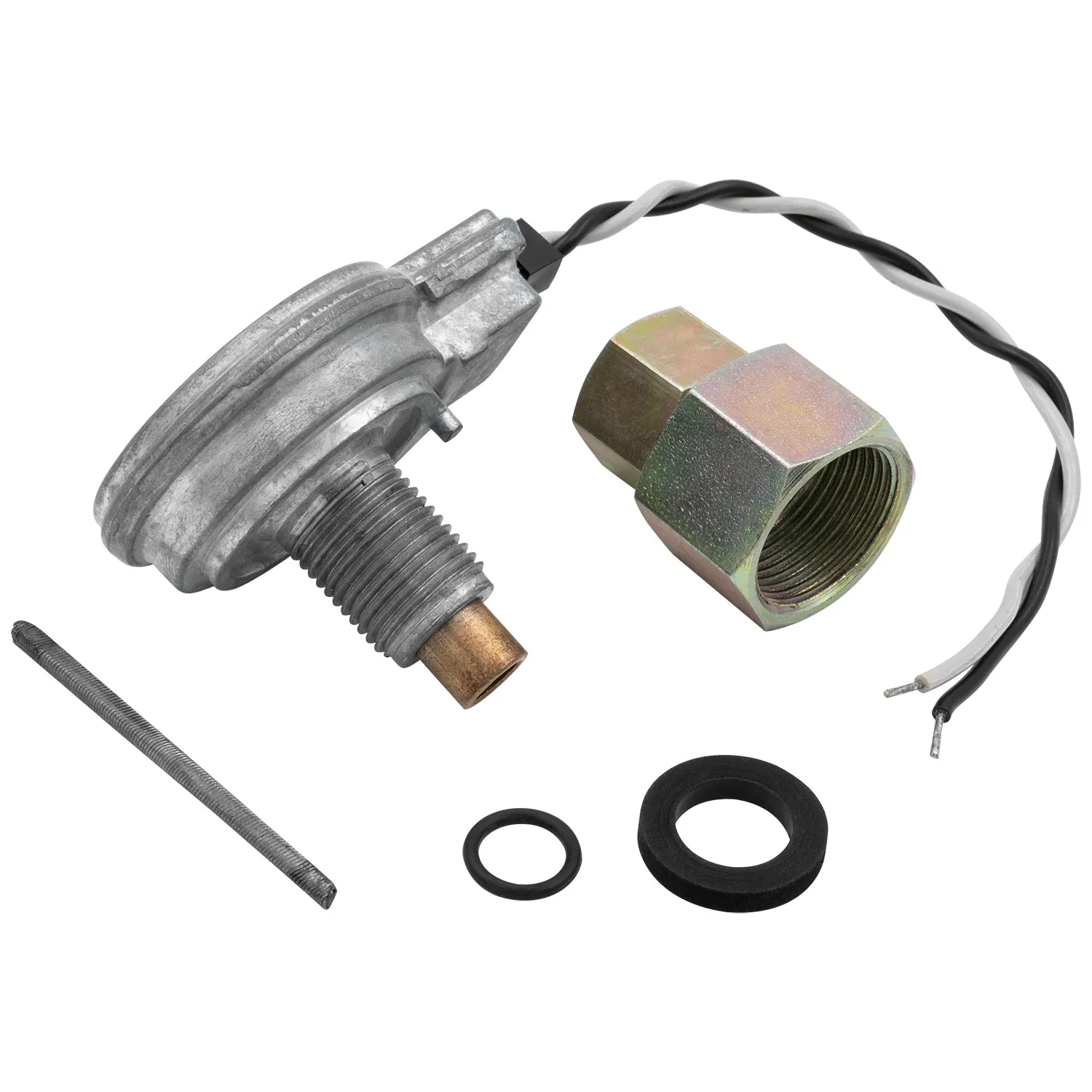

Description_FAB	oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD)
Description_FAB	Quality Construction

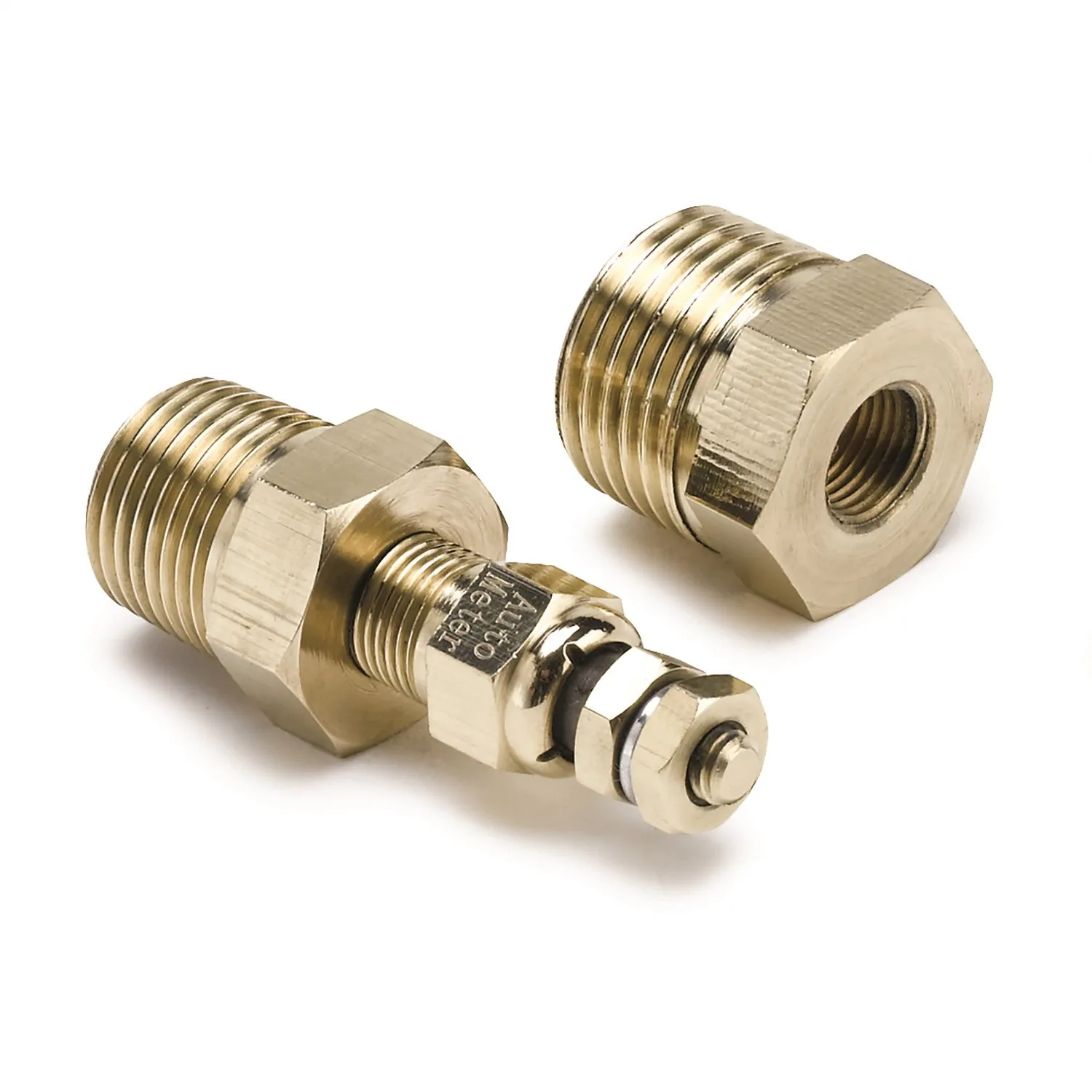

Description_FAB	sending unit adapters (1/4" , 3/8" , and 1/2" NPT adapters)
Description_FAB	Simple Push Button 2 Mile Drive Calibration
Description_FAB	Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
Description_FAB	Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
Description_FAB	Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
Description_FAB	Traditional incandescent lighting illuminates around the perimeter of the dial
Description_FAB	Traditional Incandescent Lighting Illuminates Perimeter Of Dial
Description_INV	5" QUAD GAUGE & SPEEDO, ARCTIC WHITE, CV
Description_INV	5in. QUAD GAUGE/SPEEDO; ARCTIC WHITE; CV
Description_LAB	Made In Logo
Description_LAB	Proposition 65
Description_MKT	Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter's 3262 fuel level sender).
Description_MKT	Sometimes Space Is Limited. The Autometer Quad Gauge Provides A Solution To Limited Dashboard Space While Providing A Clean Look. Individual Autometer Air Core Meter Movements For Each Function Provide The Accuracy And Durability Required By Even The Most Demanding Applications. Includes A Single Wire 1/8" Npt Temperature Sender And A 1/8" Npt Oil Pressure Sender. The Voltmeter Reads From 8-18V On Negative Ground Electrical Systems And Fuel Level Resistance Range Is 240 Ohms Empty To 33 Ohms Full (Compatible With Autometers 3262 Fuel Level Sender).
Description_SHO	GA KT 5" QUAD/SPD CV
Description_SHO	GA KT 5in. QUAD/SPD
height	4.0
length	9.0
LTL	N
Title	2 PC. GAUGE KIT, 5 in. QUAD & SPEEDOMETER, 240-33 O, CHEVY VINTAGE
weight	4.85
width	18.0
