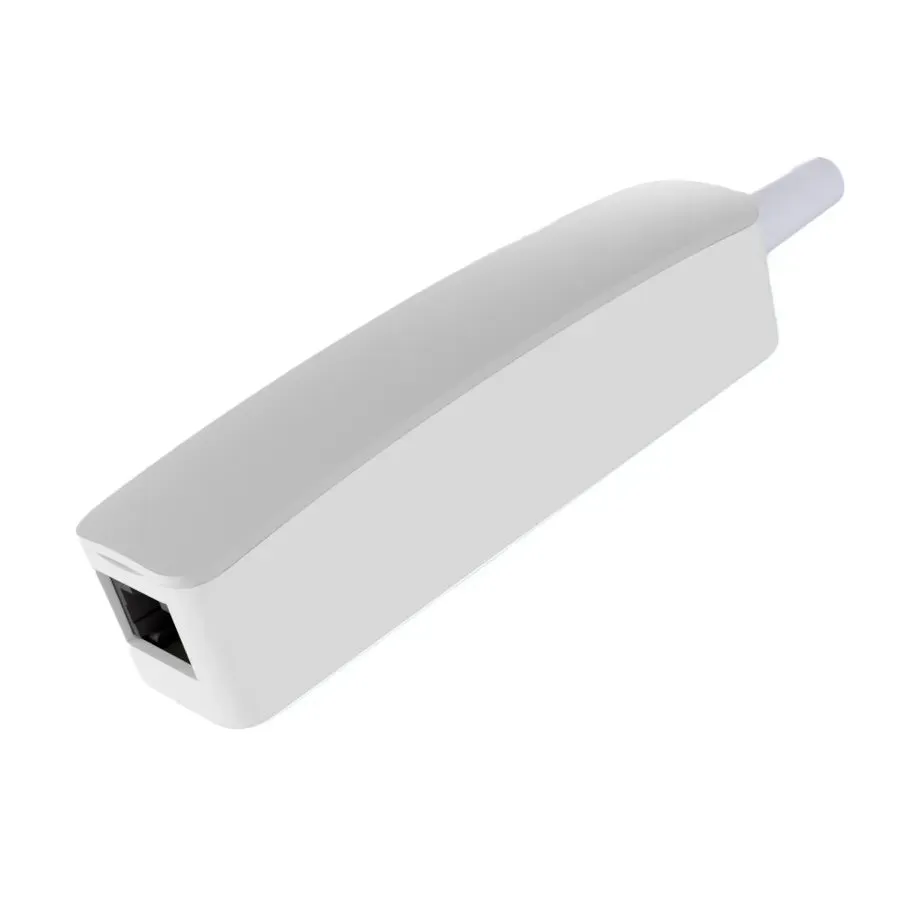

Product Details
＋
| Feature | Details |
|---|---|
| Power Supply | 42V DC (Meter Bus from the AMS meter) |
| 3V DC (Battery CR123A) for OTA upgrade | |
| Operating Voltage | 3V DC |
| Dimensions | Length: 42 mm |
| Width: 25 mm | |
| Height: 75 mm | |
| Local Communication | Radio Protocol: Zigbee 3.0, Zigbee HA 1.2 |
| Frequency: 2400-2480 MHz (IEEE 802.15.4) | |
| Transmission Power: 9dBm | |
| Environment | IP Class: IP20 (Indoor) |
| Operating Temperature: 0 to 40°C | |
| Storage Temperature: -20 to 40°C | |
| Humidity Range: 0 to 90% RH (non-condensing) |
