Product Details
＋

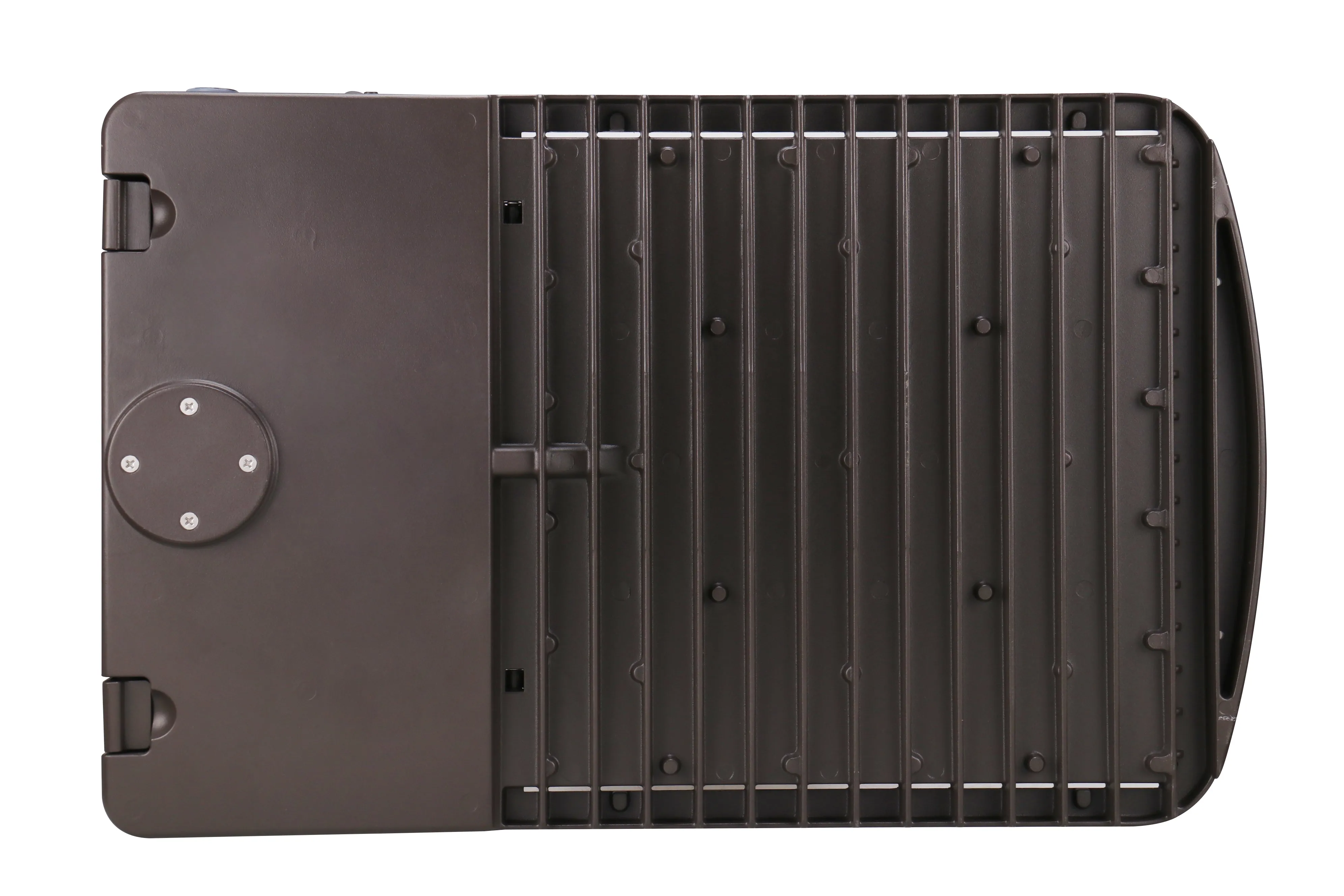

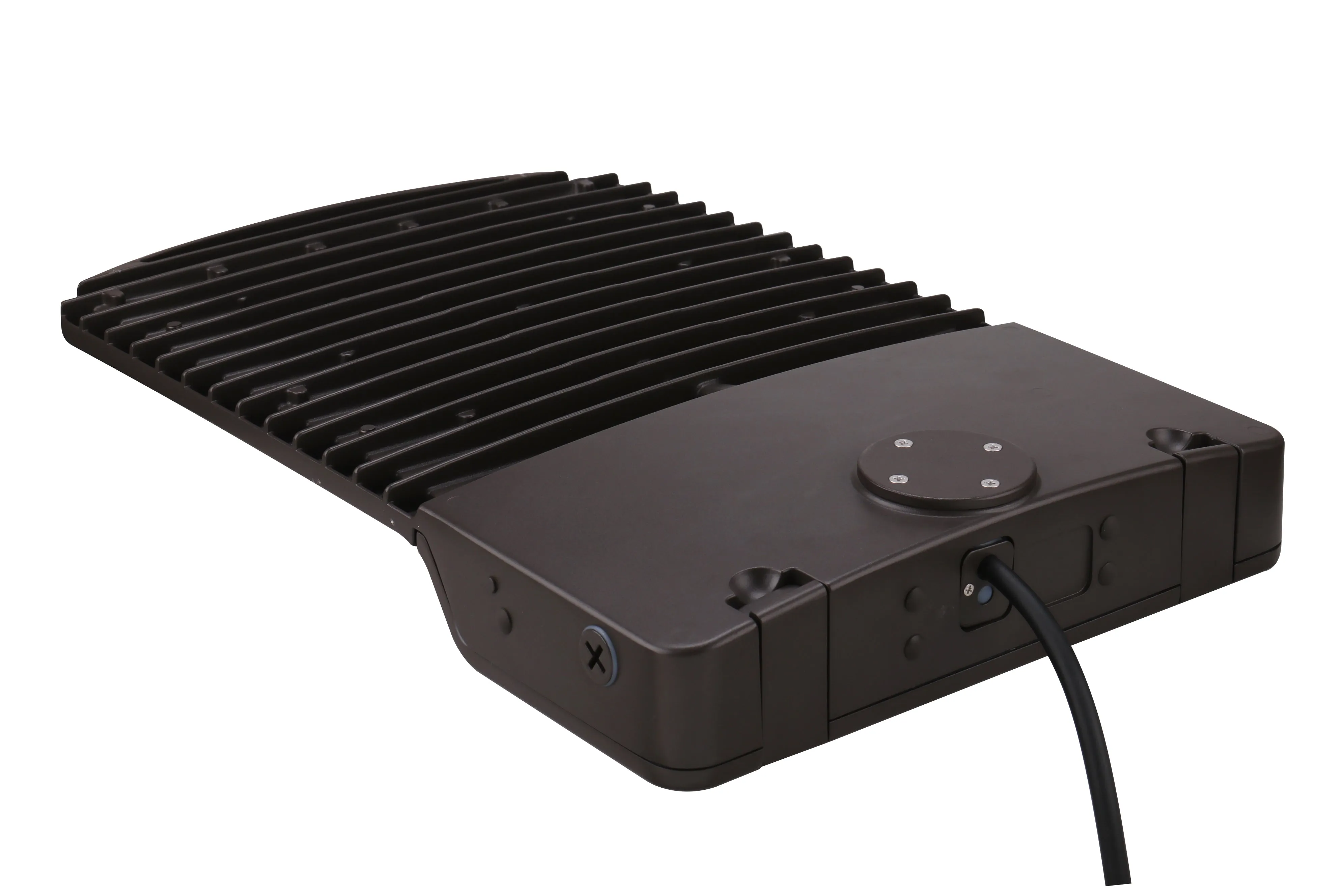

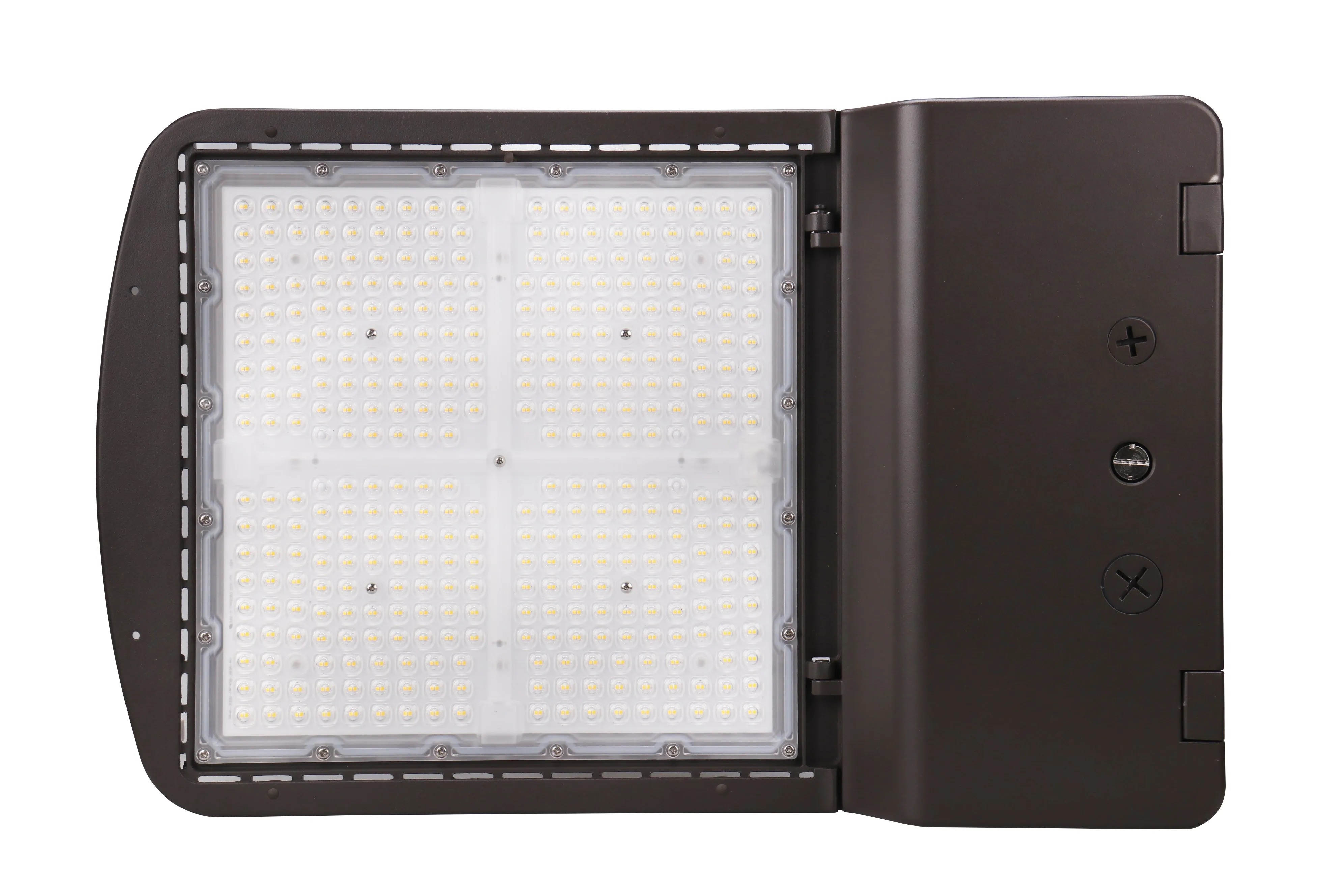

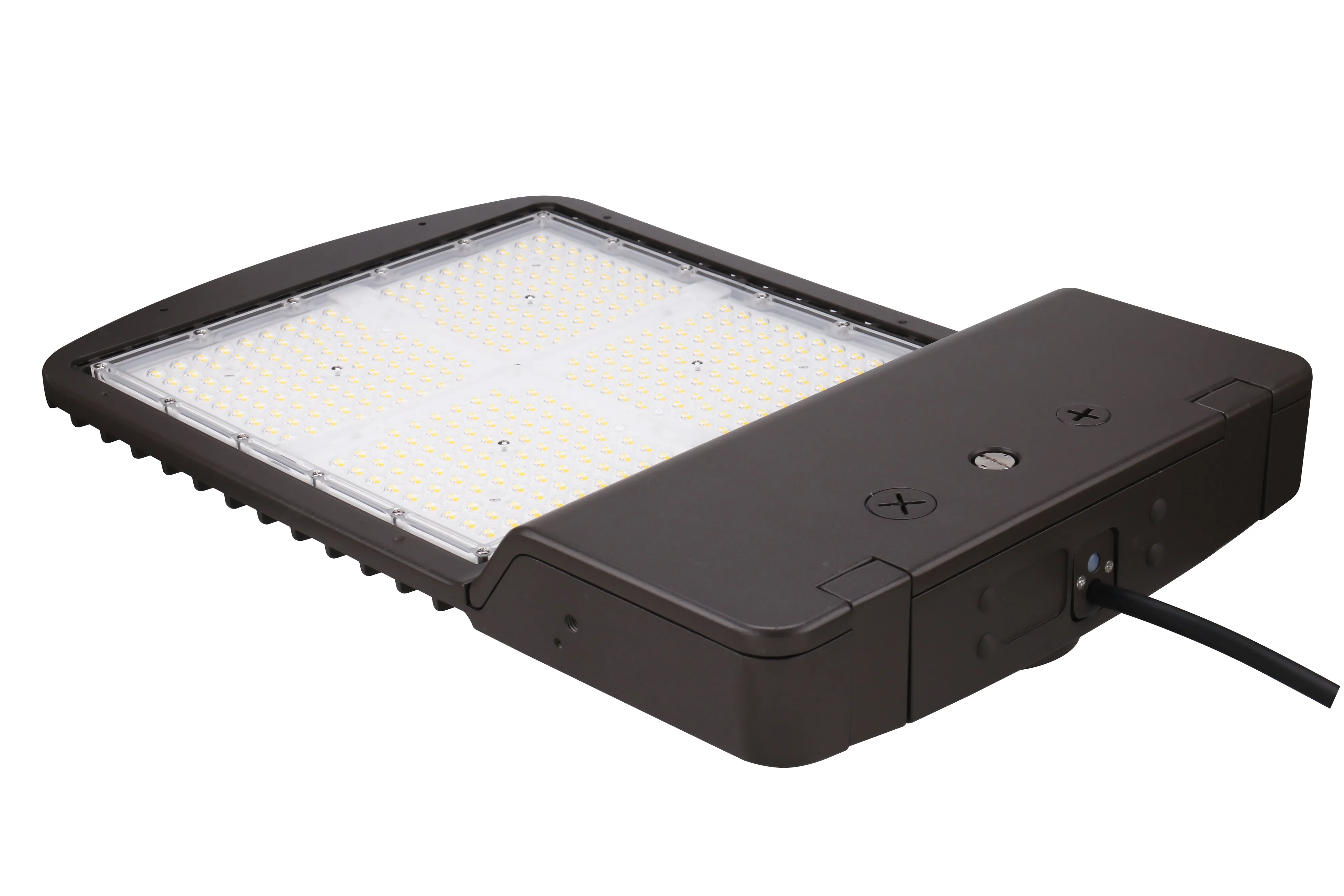

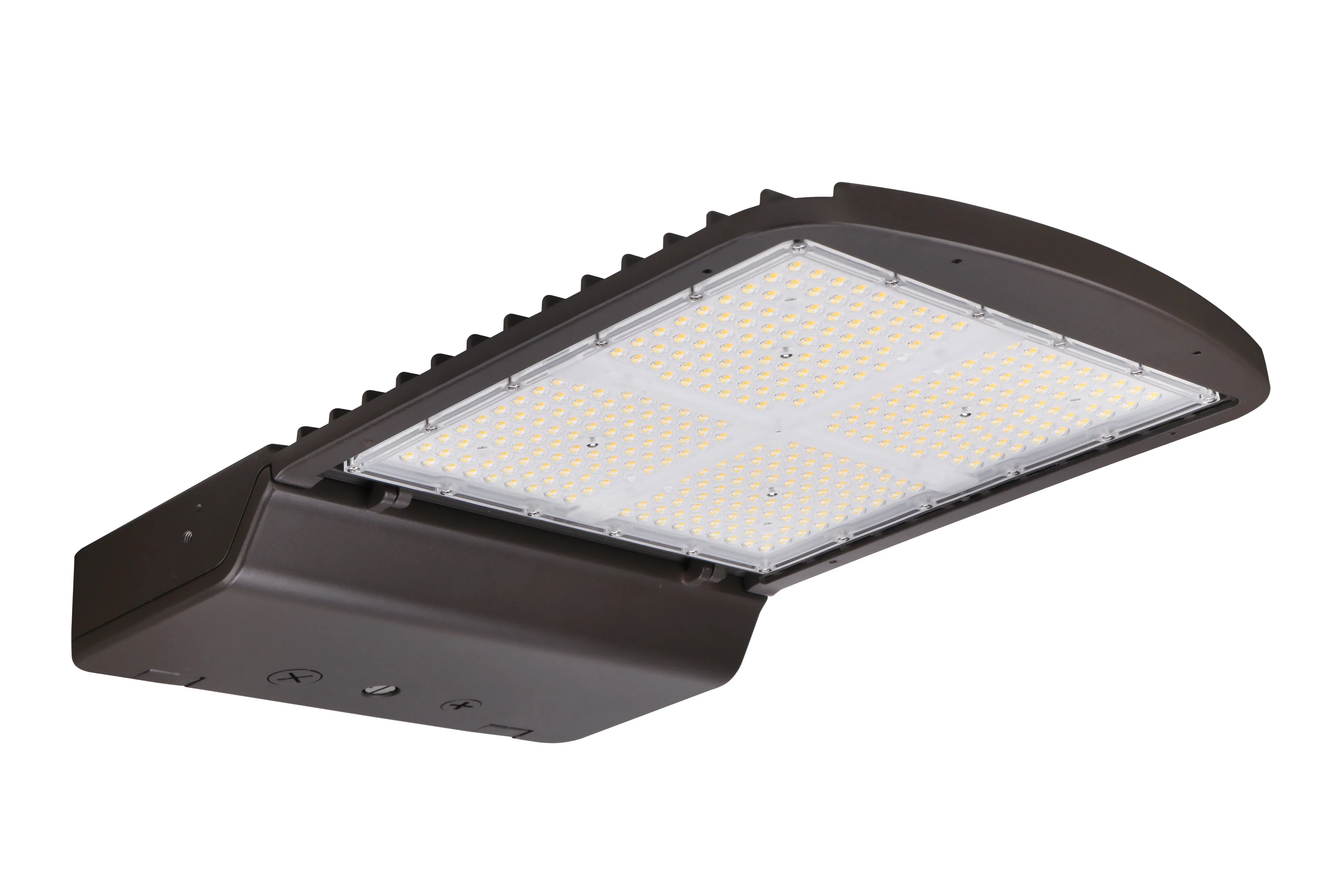

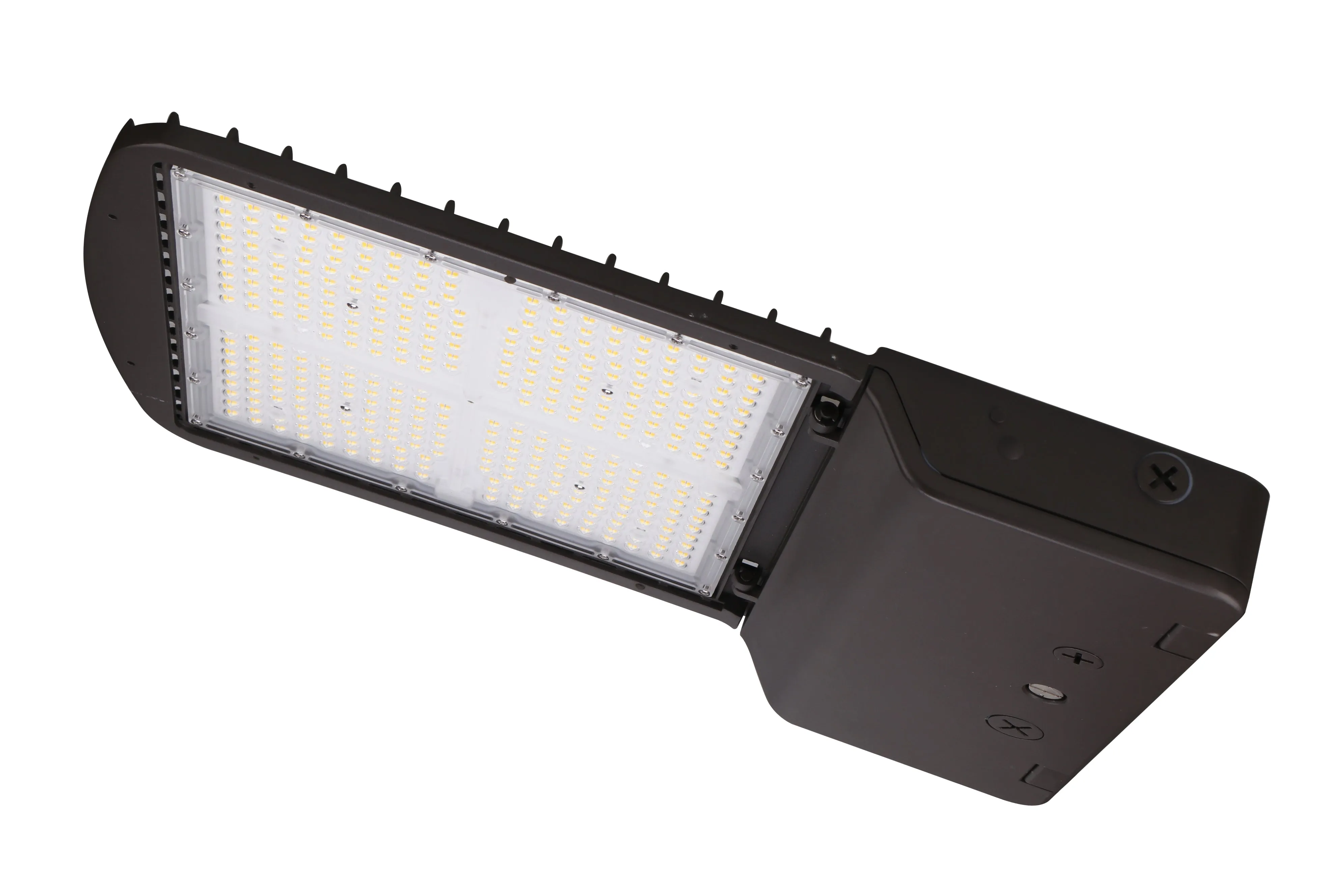

LED Area Light, 240W, 5000K, Type 5 Lens, 120-277V, Bronze
AAL1-240-50T5-U
Order Code:13594
| Product Specifications | |
|---|---|
| Voltage | 120-277VAC |
| Lumens (lm) | 33,600 lm |
| Wattage | 240W |
| Efficacy (lm/W) | 140 lm/W |
| CCT | 5000K |
| CRI | 80 |
| Dimming | 0-10 |
| Replacement For/Equivalent | up to 800W HID |
| DLC Version | DLC Premium |
| T20 Status | Exempt |
| IP Rating | IP65 |
| Wet/Damp/Dry Location | Wet |
| IK Rating | 8 |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| UL | Yes |
| Dimensions (L x W x H) | L: 20 3/8" (518 mm), W: 13" (330 mm), H: 2 5/16" (74 mm) |
| Housing Color | Bronze |
| Lens Material | Polycarbonate (PC) |
| Operating Temp Range (°F/°C) | -40F to 122F (-40C to 50C) |
| Driver Surge Protection (kV) | L/N-PE: 10kV, L-N: 10kV |
| Additional Surge Protection (kV) | 10kV included, 20kV option |
| Auxiliary Output | 12V, 100mA |
| Warranty | 5 Years |
