PT3-150GS-3

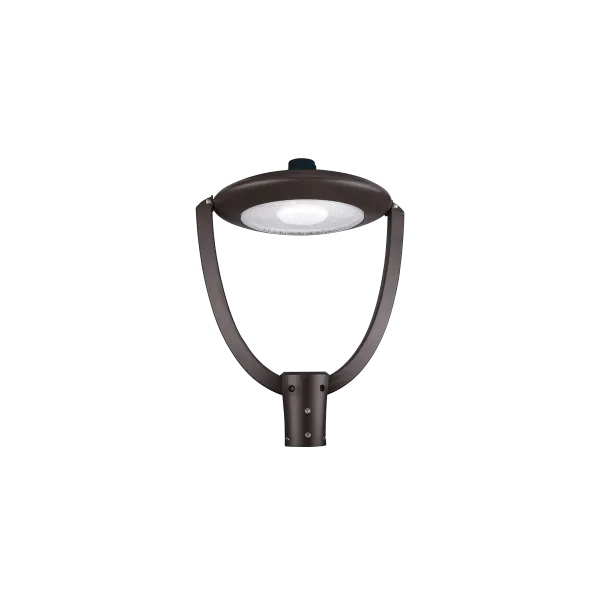

Name: LED PT3-150GS-3 Matte Black LED Post Top Light CCT Selectable
SKU: 1867139

Order Code:13124

Pole Top, 150/125/100W, 3K/4K/5K, 100-347V, Dimmable

UPC CODE: 031293131249

These PT3-Series LED Pole Top luminaires are a modern
twist on the everyday pathway fixture. With a wide beam
angle that provides uniform light, these fixtures are the
perfect lighting solution for parking lots, parks, and retail
settings.

Voltage	120-347VAC
Lumens (lm)	150W, 3K: 19,265 lm \| 150W, 4K: 20,602 lm \| 150W, 5K: 20,262 lm \| 125W, 3K: 17,127 lm \| 125W, 4K: 18,285 lm \| 125W, 5K: 18,163 lm \| 100W, 3K: 12,618 lm \| 100W, 4K: 13,083 lm \| 100W, 5K: 13,102 lm
Wattage	150/125/100W
Efficacy (lm/W)	150W, 3K: 122 lm/W \| 150W, 4K: 140 lm/W \| 150W, 5K: 130 lm/W \| 125W, 3K: 128 lm/W \| 125W, 4K: 145 lm/W \| 125W, 5K: 138 lm/W \| 100W, 3K: 130 lm/W \| 100W, 4K: 143 lm/W \| 100W, 5K: 139 lm/W
CCT (K)	3000K / 4000K / 5000K
CRI	80
Replacement for	Up to 400W HID
DLC Version	DLC Premium
T20 Status	Exempt
IP Rating	IP65
Wet/Damp/Dry Location	Wet
FCC Compliant New	Yes
Dimensions (L x W x H)	L: 26 1/4" (666mm), W: 21" (531mm), H: 3" (75mm)
Housing Color	Matte Black
Lens Material New	Tempered Glass
Ambient Temp Range	-40F to 122F (-40C to 50C)
Driver Surge Protection (kV) new	L/N-PE: 6kV, L-N: 4kV
General Warranty	10 Years
